Red tread. Cast metal hub.
Angled manufacturing example.
JUNSHIDA / made to requirementThe wheels.
The wheels.
The work behind them.
Examples from our actual products and production materials. Your drawing and operating requirements define the specification of your order.

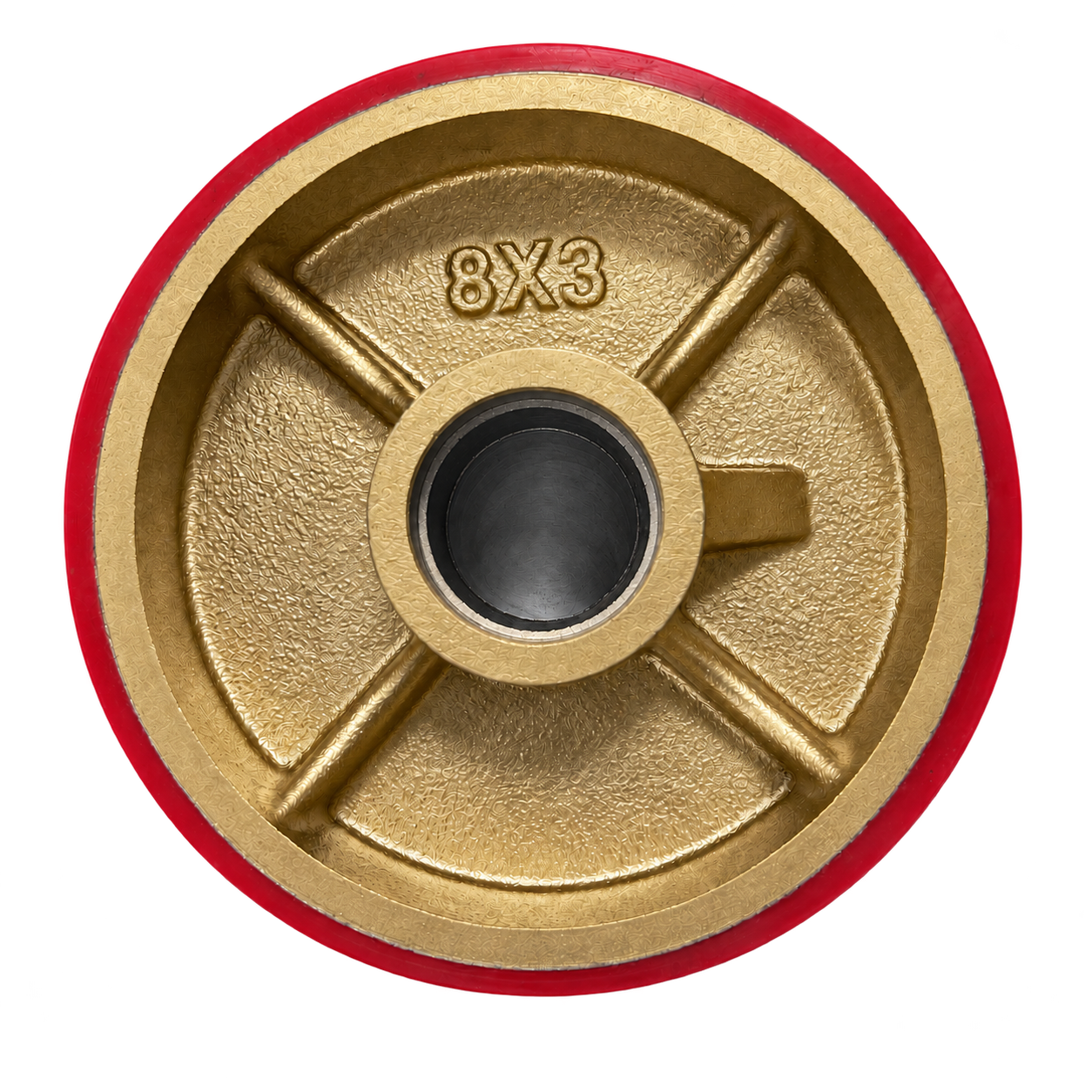

Metal-core wheel. Face detail.
Separate reference example.

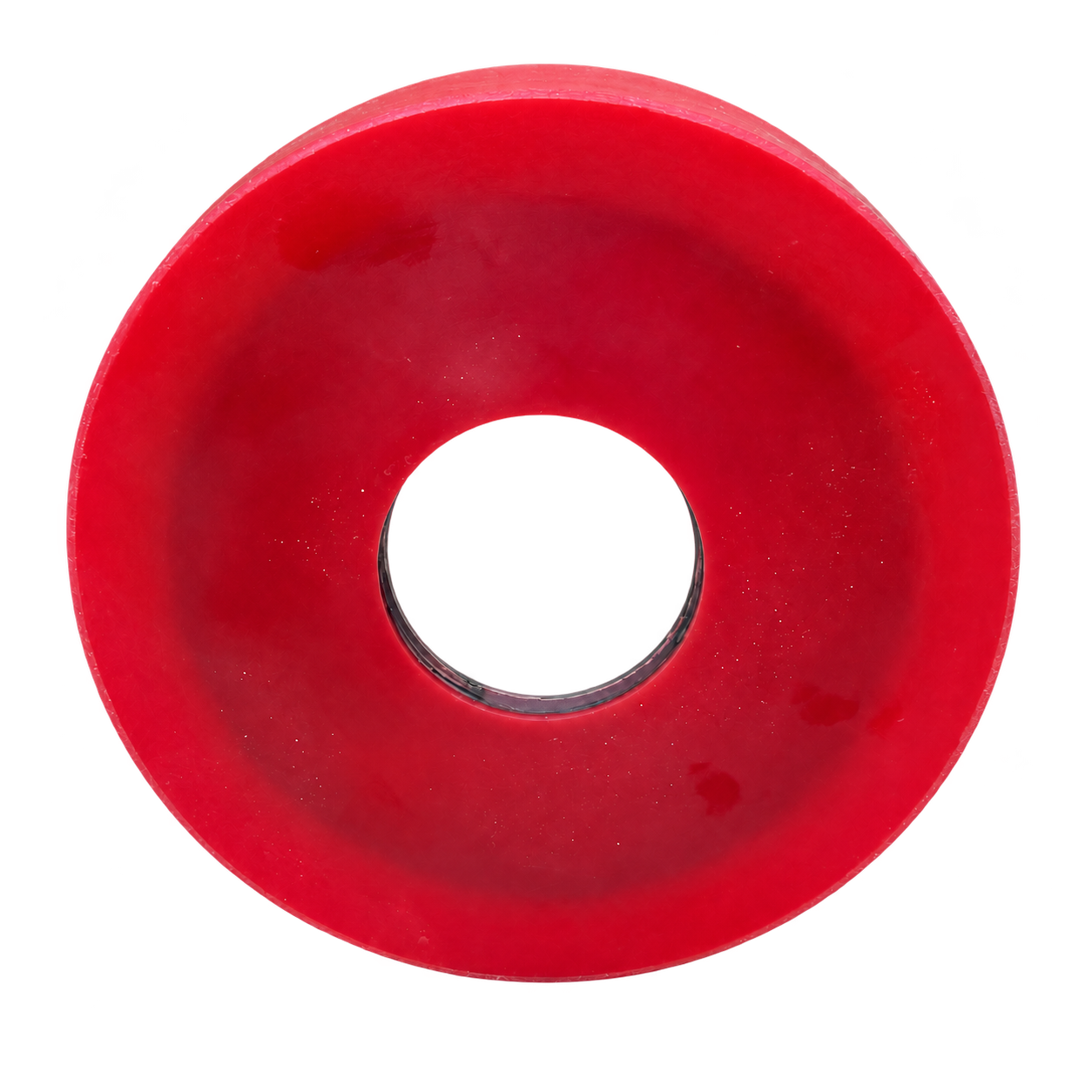

Plain-face red wheel.
Angled manufacturing example.
Plain-face wheel. Bore detail.
Face and mounting reference.
Amber polyurethane roller.
Tread width and metal-core structure.

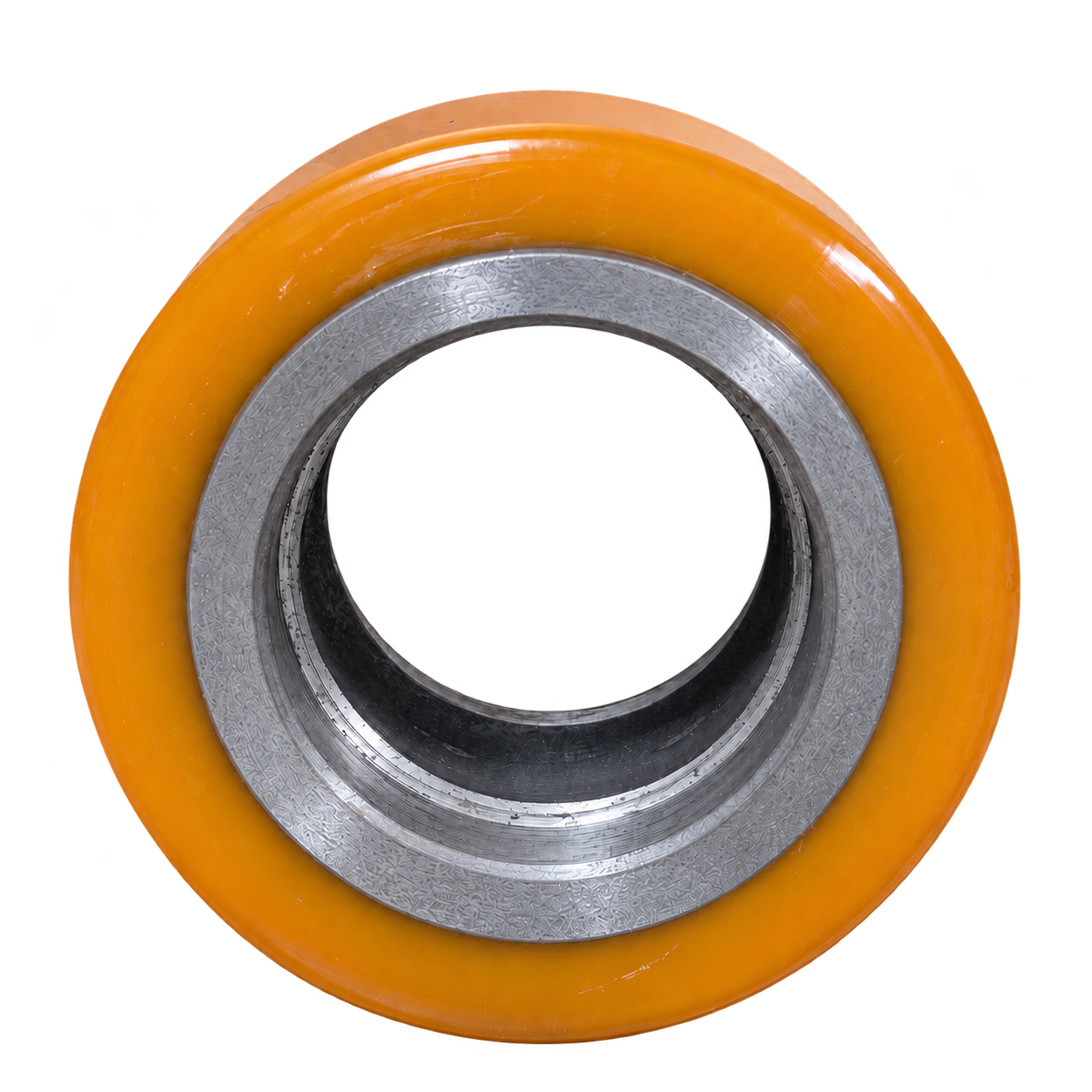

Amber roller. Face detail.
Bore and face reference.

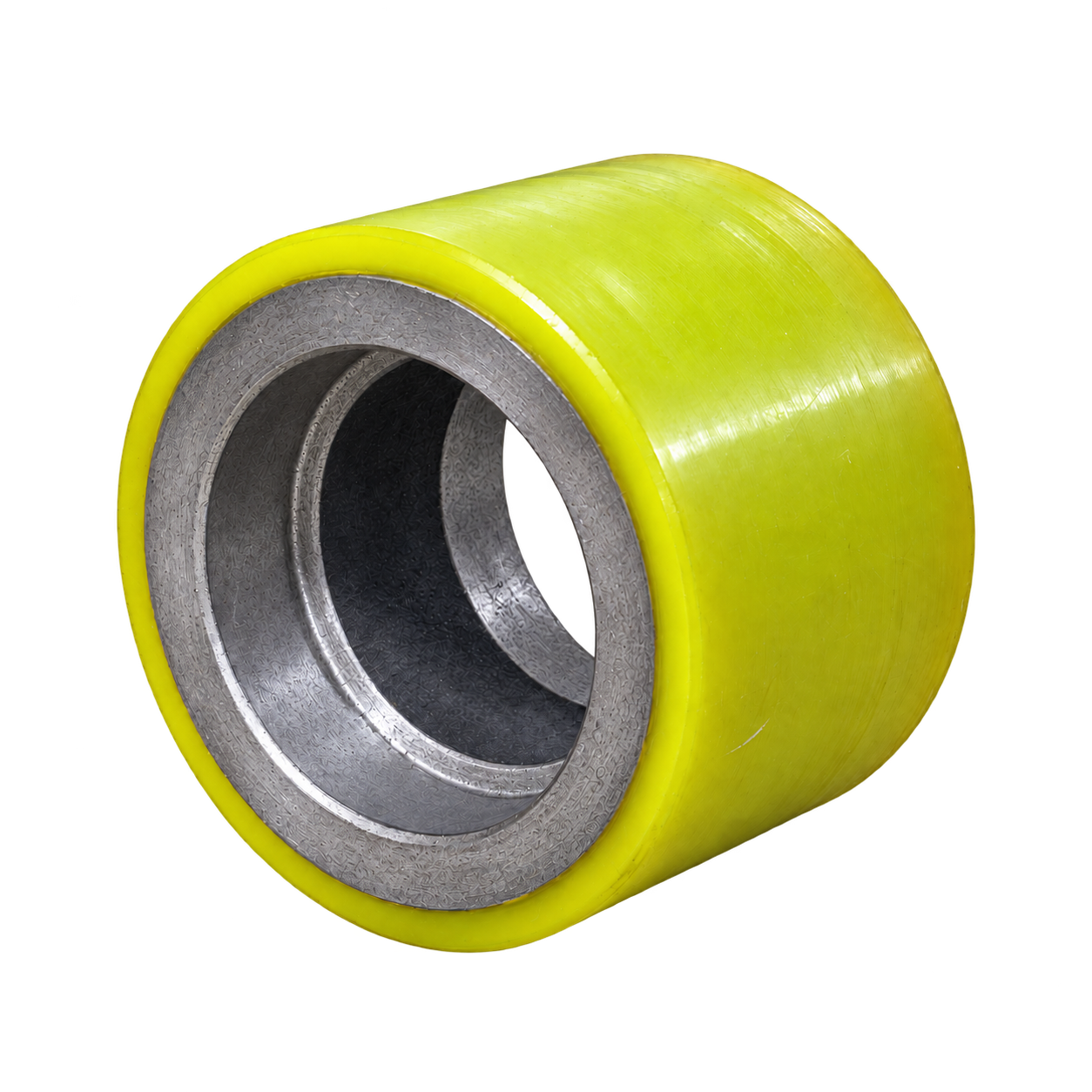

Green polyurethane roller.
Metal-core structure and tread.

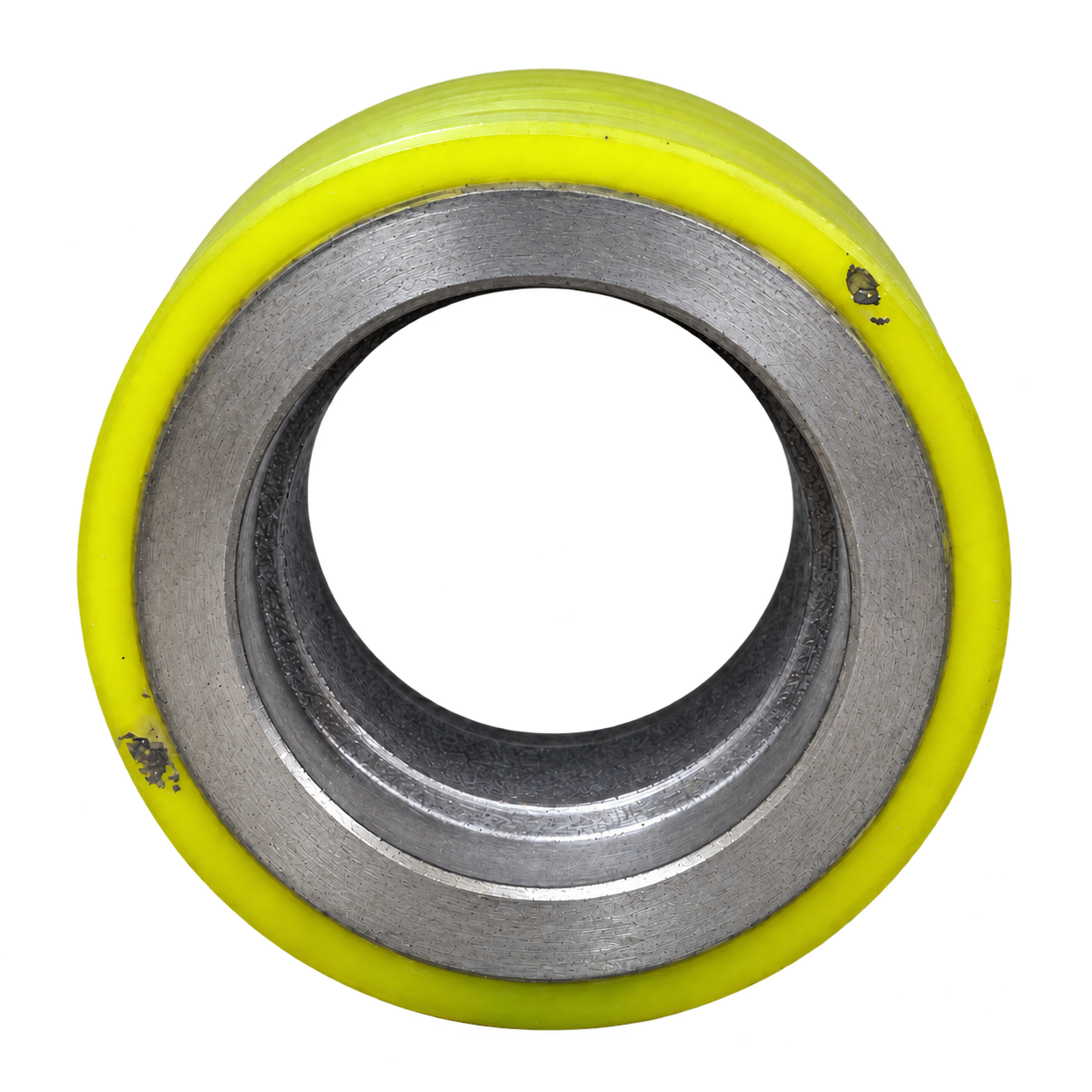

Green roller. Face detail.
Bore and face reference.

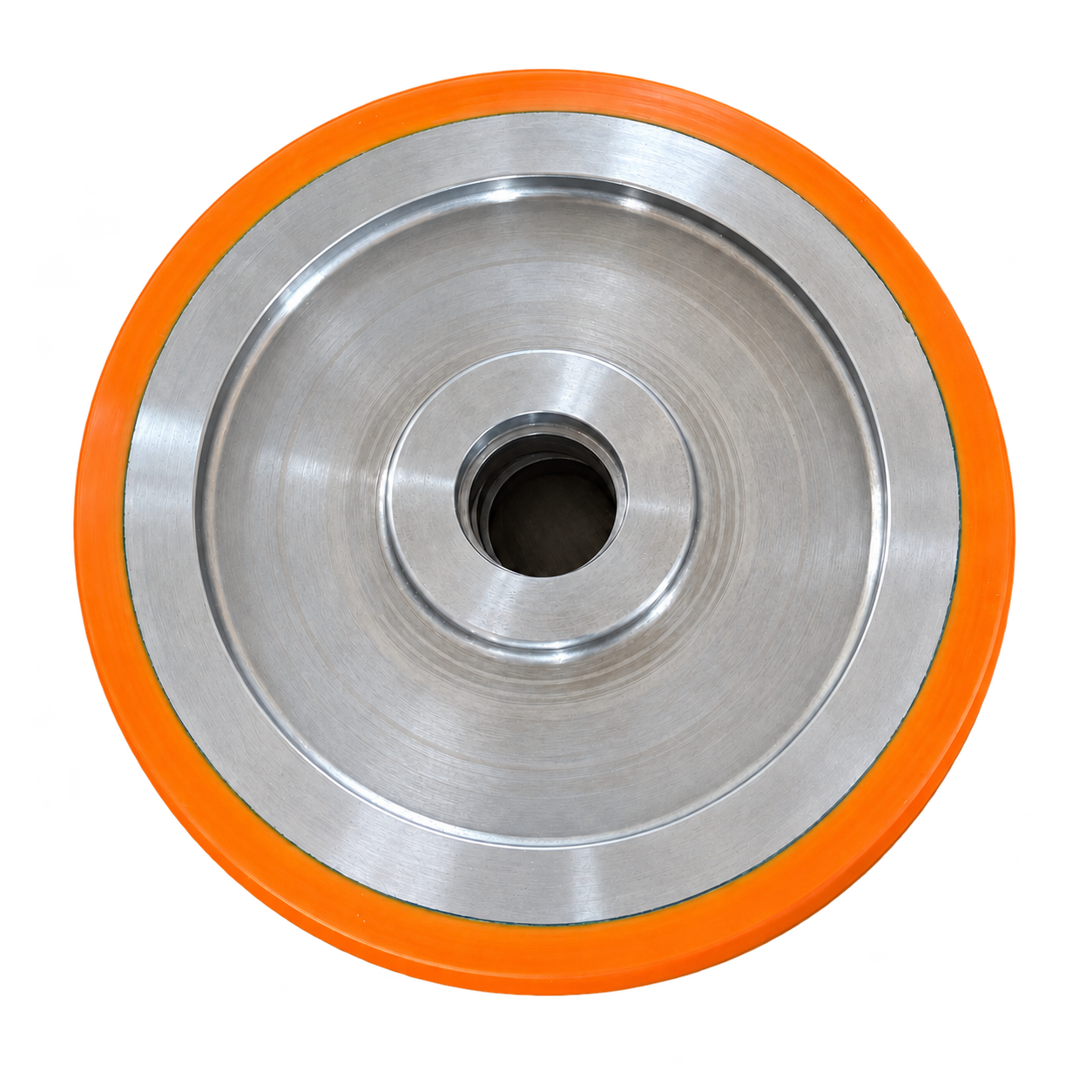

Orange tread. Machined hub.
Stepped metal-core wheel structure.

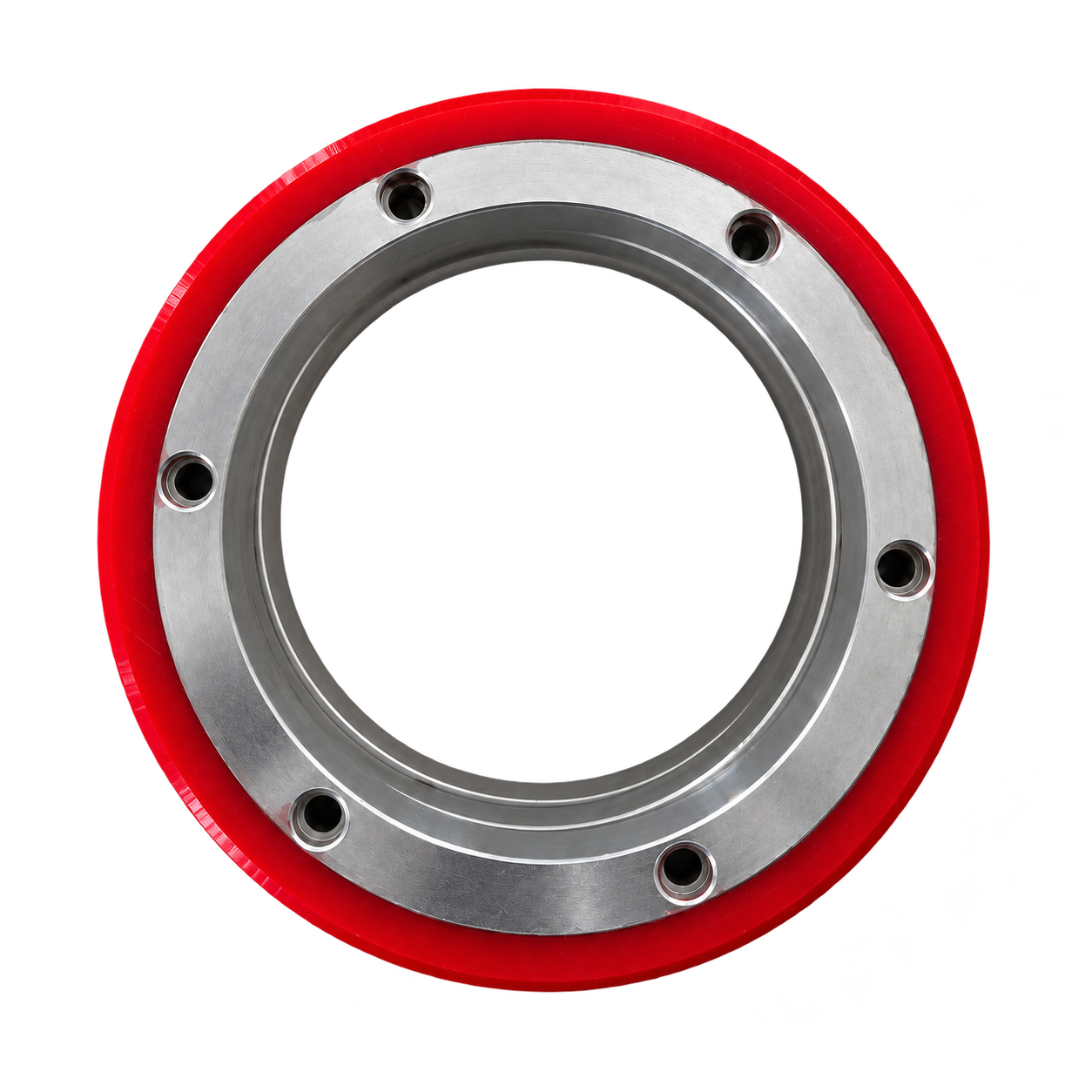

Custom coated ring.
Drawing-specific structure and mounting.
Product photos supplied by the manufacturer and retouched for background, lighting and visible surface oxidation. Images are manufacturing examples, not dimensional specifications.
On the workshop floor
From casting to batch.
Wheel core preparation
Metal wheel cores with bores and reinforcing ribs before casting.
Dimensional inspection
A vernier caliper measuring polyurethane roller face width.
Polyurethane casting
Actual pouring around metal wheel cores.

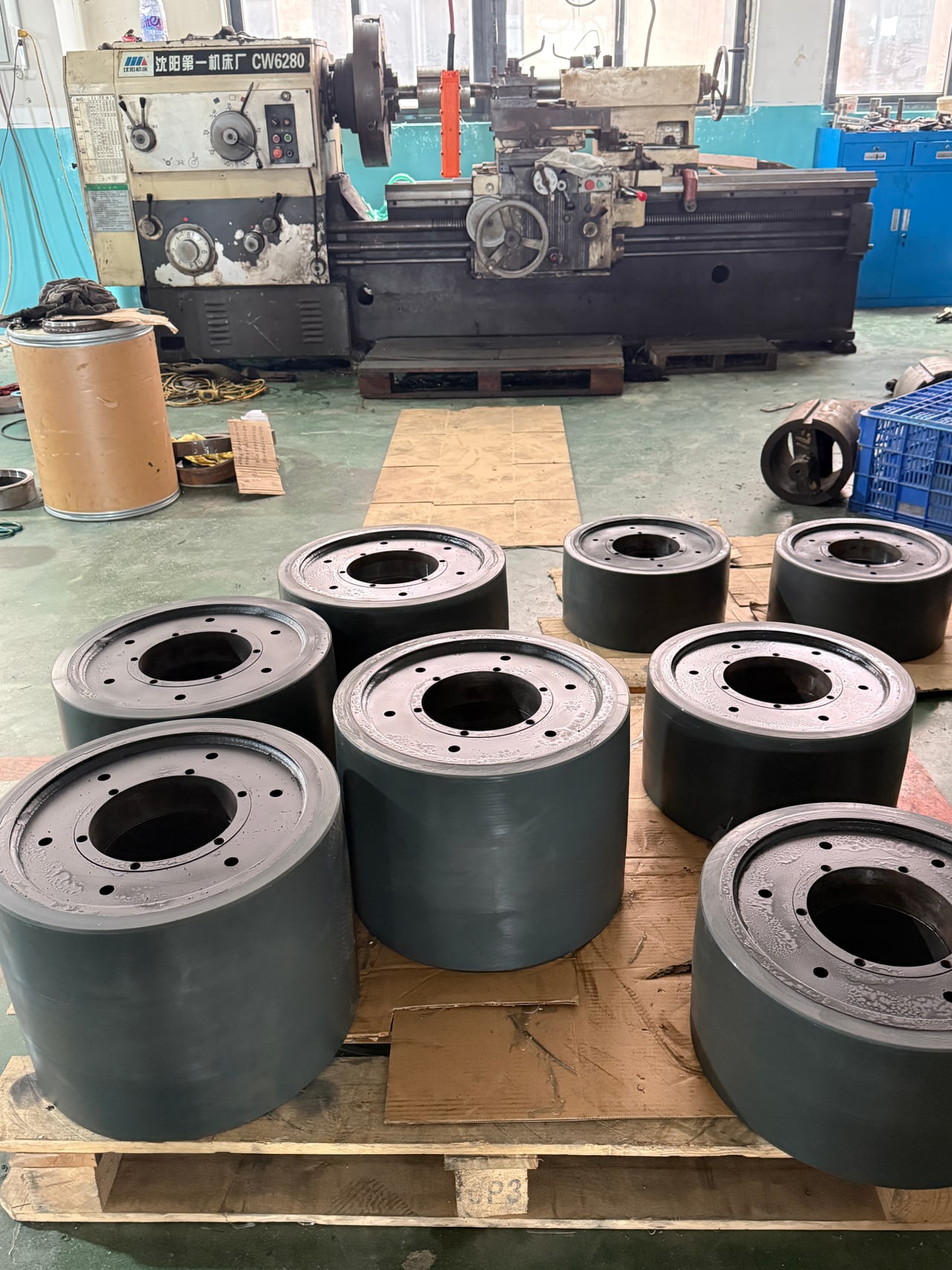

Machining workshop
Workshop lathe and batch of finished wheels.

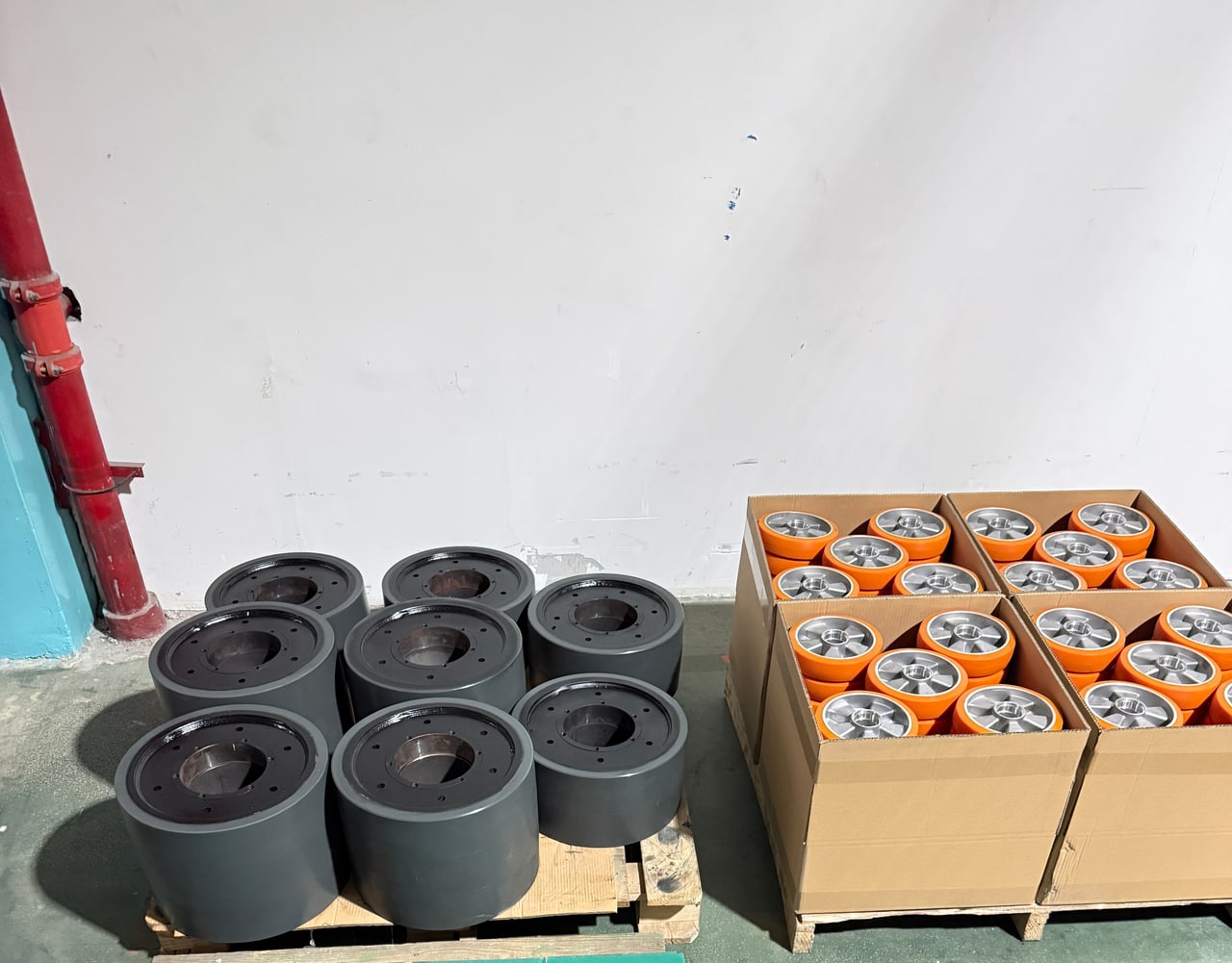

Batch preparation
Orange wheels in cartons and dark wheels on a pallet.
Actual workshop and batch photographs. Equipment and product counts are shown as photographed.
LABORATORY / ORIGINAL PHOTOGRAPHY
Inside the laboratory.
Equipment and preparation shown as photographed. Testing and records are agreed for the project.
Tensile testing equipment
Abrasion testing equipment
Universal testing equipment
Laboratory workstation

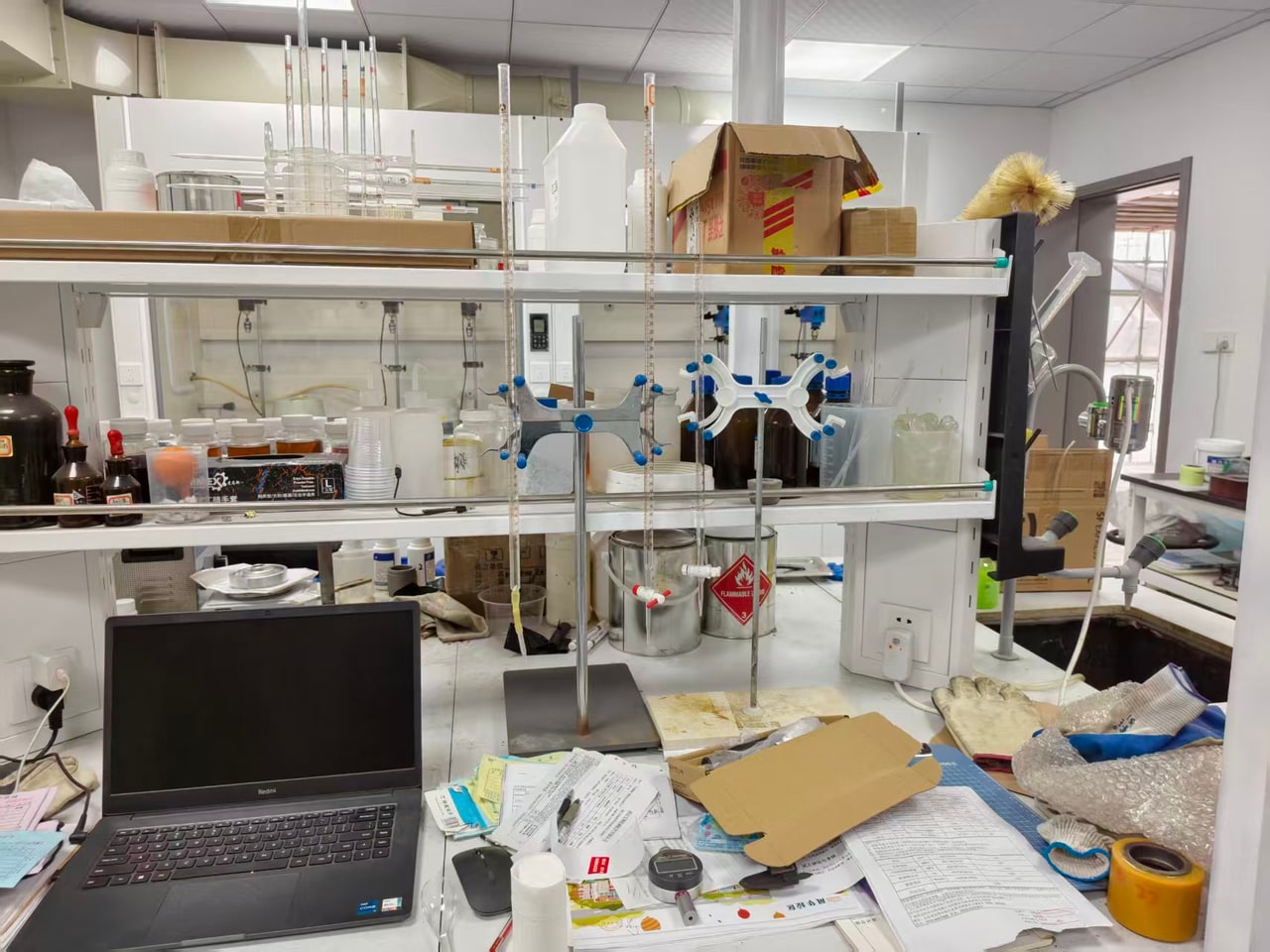

Laboratory bench
Material preparation equipment
Glassware and sample containers
Original footageSee the real part.
See the real part.
See the real process.
Customer-supplied product and machining footage. Play on demand to see the wheel surface, structure and finishing operation.
Finished wheel detail
A close look at the polyurethane tread, metal hub and mounting bore.
Wheel finishing on the lathe
Original workshop footage of a polyurethane wheel during machining.
Original footage · Sound is muted by default; you can unmute it in the player.
YOUR NEXT WHEEL STARTS HERE
Discuss your project Bring us your reference.
Drawing, sample or a set of measurements. Let’s define your next wheel together.
